Smart water pressure gauge
Product number 4110331101
Smart water pressure gauge
We are helping create a better future by our innovative solutions.
Smart water pressure gauge
| Item | Specification |
|---|---|
| Charging power | 4.0~7.5V(1.6A max) |
| Charging time | 5h max. |
| Power switch | Magnetic reed switch |
| Display size(L*W) | 38*13mm |
| Display size(L*W) | 16*2 Mono LED (with backlight) |
| Battery | 1cell 3.7 3000mAh lithium polymer battery |
| Communication method | LTE Modem |
| Antenna | Built-in body |
| Protection class | IPX7 |
| Pressure | 20bar max (Error within 1%) |
| Operating temperature | -20~55℃ |
| Weight-Body | approximately 500g |
| Weight- All | Within 10kg |
| Appearance - Body (L*W*D) | 183*150*51mm |
| Appearance - hard case (L*W*D) | 557*348*199mm |
Smart water pressure management and flow monitoring at once!

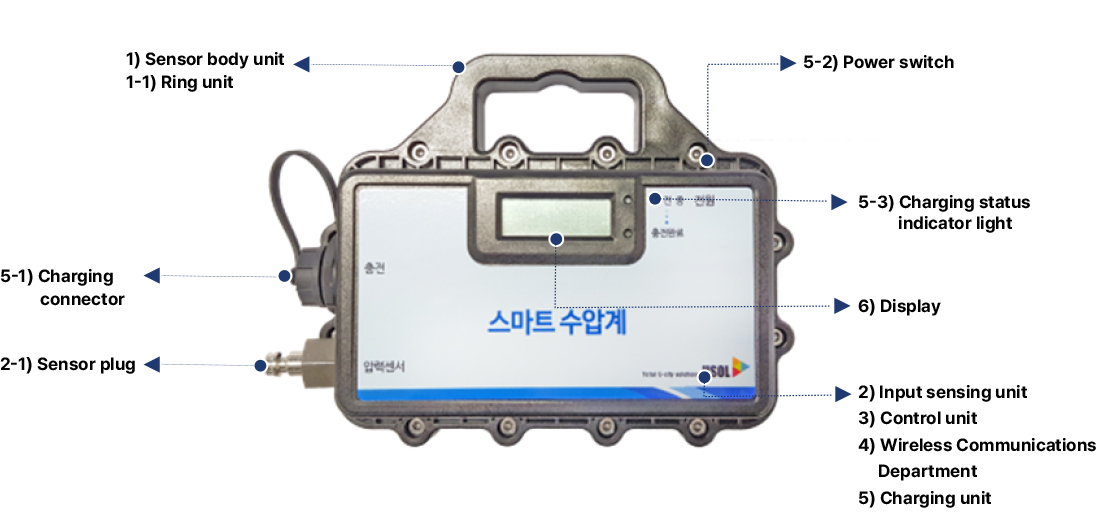

Photos of Smart water pressure gauge
